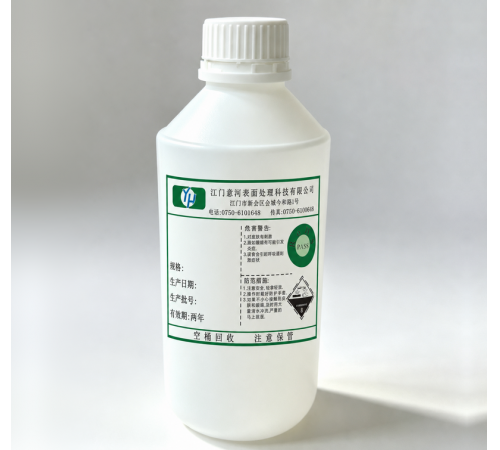

Product Name:YH-160 Gold-Cobalt Hard Gold

Solution Composition & Operating Parameters:
Gold Content: 0.5-18 g/L

YH-160 Make-up Concentrate: 200 mL/L

YH-160 Conductive Specific Gravity Salt: 120 g/L

pH: 3.8-4.5

Bath Density: 1.09-1.13 g/cm³

Temperature: 45-60℃

Features and Applications:

1、Acidic gold-cobalt alloy plating bath, suitable for gold finger terminal plating and full-board gold plating for PCB manufacturers.

2、Also applicable to selective plating, continuous plating and barrel plating.

3、High deposition rate, high brightness, excellent corrosion resistance and wear resistance.

Specification:

Solid: 8 kg/bag, 16 or 24 kg/carton

Liquid: 1L, 100ml/bottle
